Land Rover DEFENDER 110 Td5 galvanised chassis CLASSIC – MAER All Terrain Solutions
Warranty
Legs made from 3mm thick steel. Outriggers and cross members produced with 3mm to 8mm-thick material. High-durability S355 J2+N carbon steel used.
All chassis elements are laser cut and shaped with CNC press brake.Legs are welded from four parts. Elements that require extra strength use thicker steel, not lamination!Additional inspection holes in the legs and all crossmembers so the chassis can be washed inside. Perfect for additional wax protection.Mud-accumulating points kept to a minimum.All chassis are ready for the wiring loom and equipped with a pulling rope.
Hot dip galvanization – high-quality coating which achieves a most durable finish.Construction designed from the beginning for hot dip galvanization with appropriate size holes and flow ways.
All wheelbases, body and engine versions available.
No restrictions. It is possible to make a chassis for a specific application – off road racing, overlanding ect. Equipped with additional fuel and water tanks, different wheelbase, non Land Rover engine and gearbox.

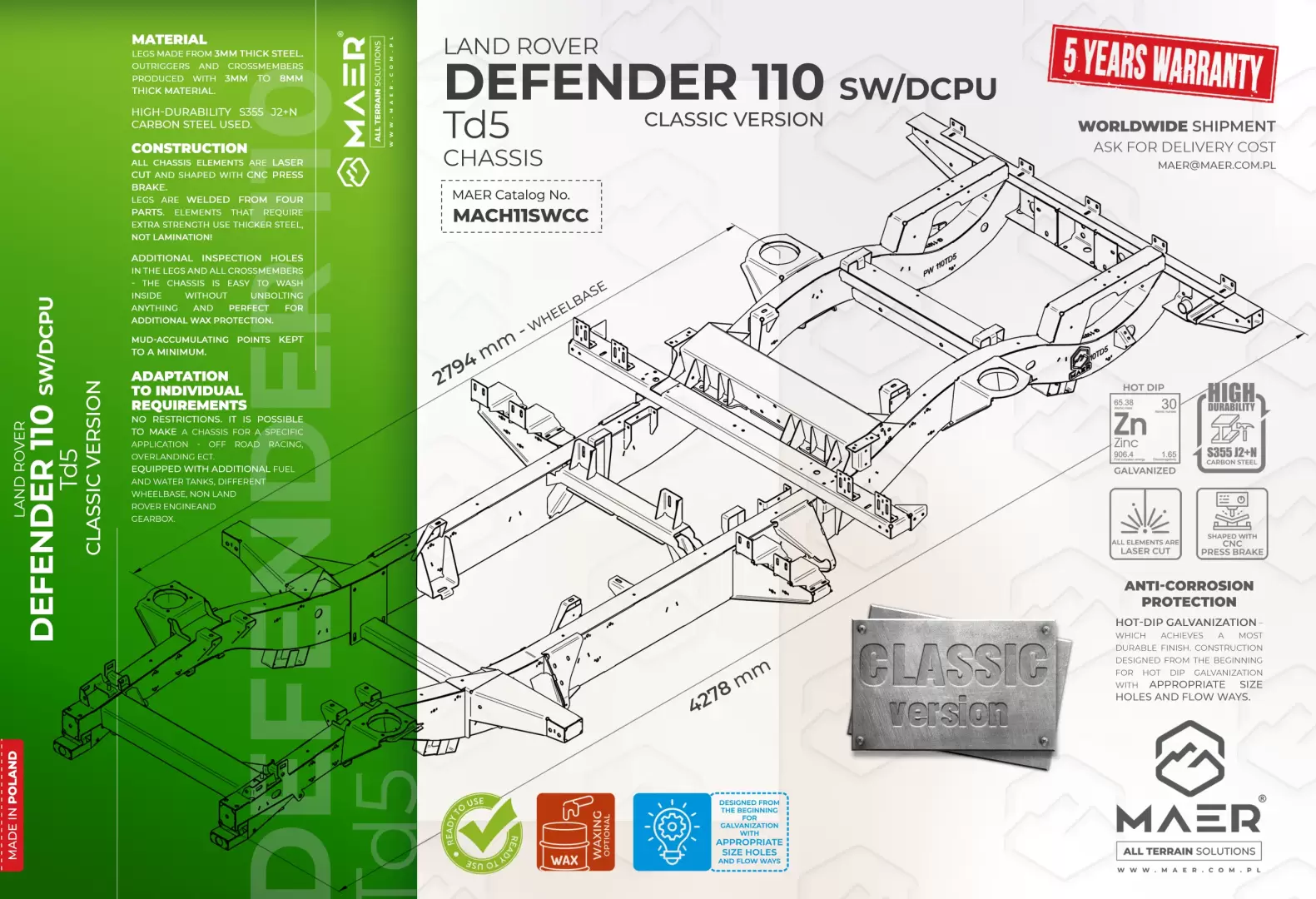

CLASSIS version of Land Rover Defender 110 Td5 SW/DCPU chassis
classic level of our highest quality product supplied with the correct rear and gearbox crossmembers, body crossmember, all chassis-to-body brackets and outriggers. More durable then genuine one, made from higher grade and thicker steel with improved design. Hot dip galvanised with additional holes in legs and all crossmembers, easy to wash inside without unbolting anything. All for your comfort and the best anti corrosion protection you can have.
SAVE 34,60€ / £34,60 buying this set!
Save your money, work and time choosing our CLASSIC version!
All brackets, outriggers and crossmembers included – no more preparing old parts you need.
| Buying separately all additional parts for the CLASSIC version you will pay |
| Buying our CLASSIC version you pay for them ONLY 250€ / £280 |
| CLASSIC specification includes: | |
| + BASIC version of Defender 110 V8 chassis | |
| + all CLASSIC version brackets: | |
| – 1x body crossmember | maprts-01 090 |
| – 4x body crossmember bracket | maprts-01 116 0 |
| – 4x body outrigger bracket | maprts-01 092 |
| – 1x sill to crossmember bracket L | maprts-11 019 L |
| – 1x sill to crossmember bracket R | maprts-11 019 R |
